0.96 Meter QDMA

Quick Deploy Motorized Auto-Acquire Antenna

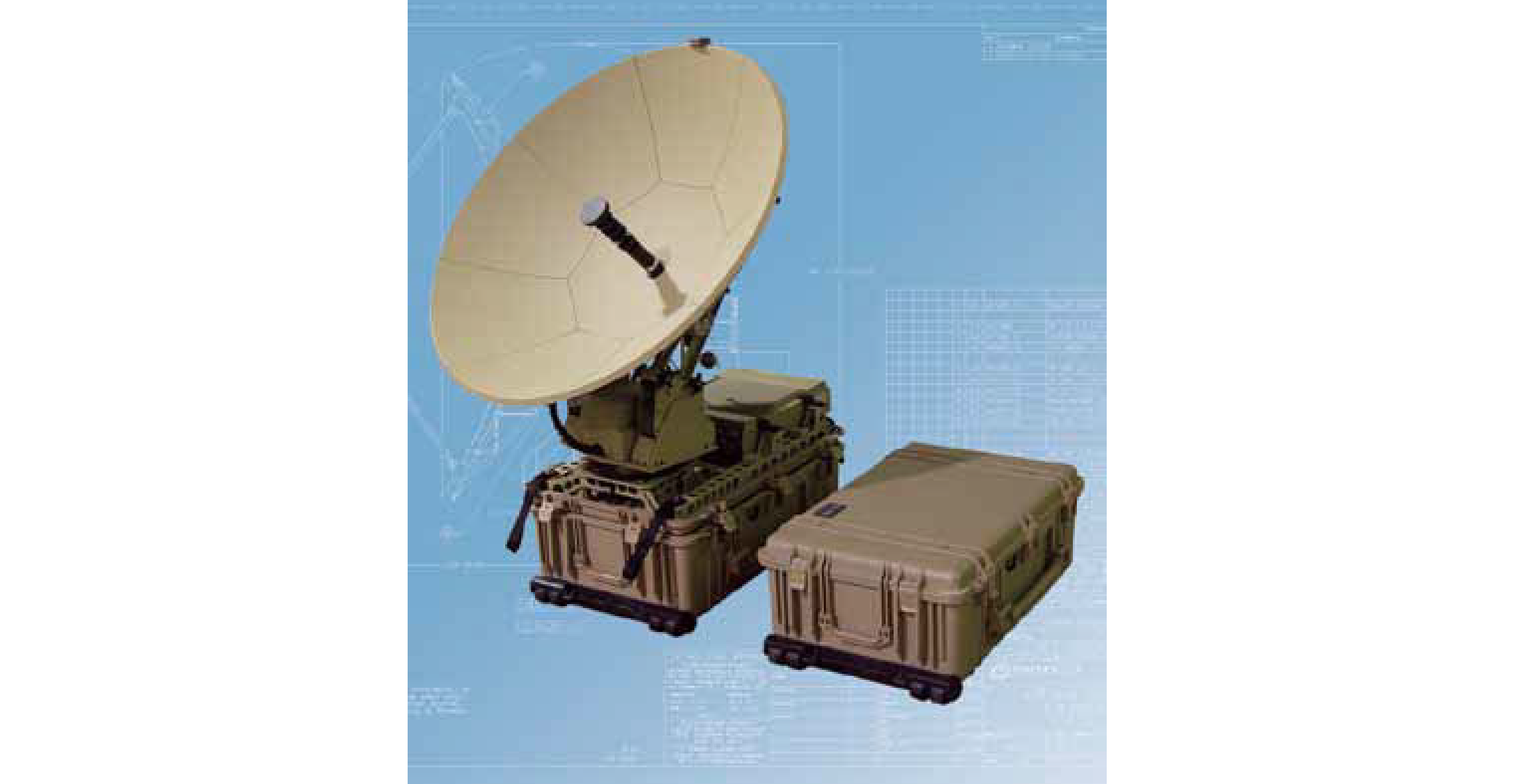

0.96 Meter QDMA Quick Deploy Antenna

The ultra-lightweight Communications & Power Industries (CPI) 0.96-meter Quick Deploy Motorized Auto-Acquire (QDMA) Antenna is designed for worldwide transmit and receive operation in Ku, Ka and X-band. This portable antenna consists of a segmented composite reflector and motorized positioner mount. This configuration results in an extremely low-weight and packable antenna product with superior stiffness and high performance under wind loading conditions.

The unique optical shape and accurate reflector surface provide good sidelobe and excellent cross-polarization performance. Repeatability is maintained with precision registration of the nine-piece reflector segments and RF components. The antenna can be quickly assembled by one person in less than ten minutes. The auto-acquire controller can find the correct satellite and optimize co-pol and crosspol performance with the push of a button. The antenna controller can be configured as a multi-functional device combining several options such as external GUI, monitor and control, spectrum analyzer and tracking.

The 0.96m QDMA antenna system, including a Stepped Ring Focus (SRF) feed, is packaged in one or two transit cases (depending on options ordered). The transit cases, designed to be checked as airline baggage, feature wheels and suitcase handles to ease relocation by one person.

  • Carbon fiber reinforced polymer (CFRP) reflector
  • Captive hardware/fasteners
  • No tools required for assembly or deployment
  • Superior cross-pol performance
  • Extremely low loss RF component mounting
  • Auto deploy, auto calibrate, auto stow controller with DVB-aided acquisition
  • Internal GPS receiver
Options
  • Multiple colors (black, white, green, tan or other)
  • Transport case configurations
  • Beacon receiver and tracking
  • Spectrum analyzer
  • Ruggedized touch screen remote computer
