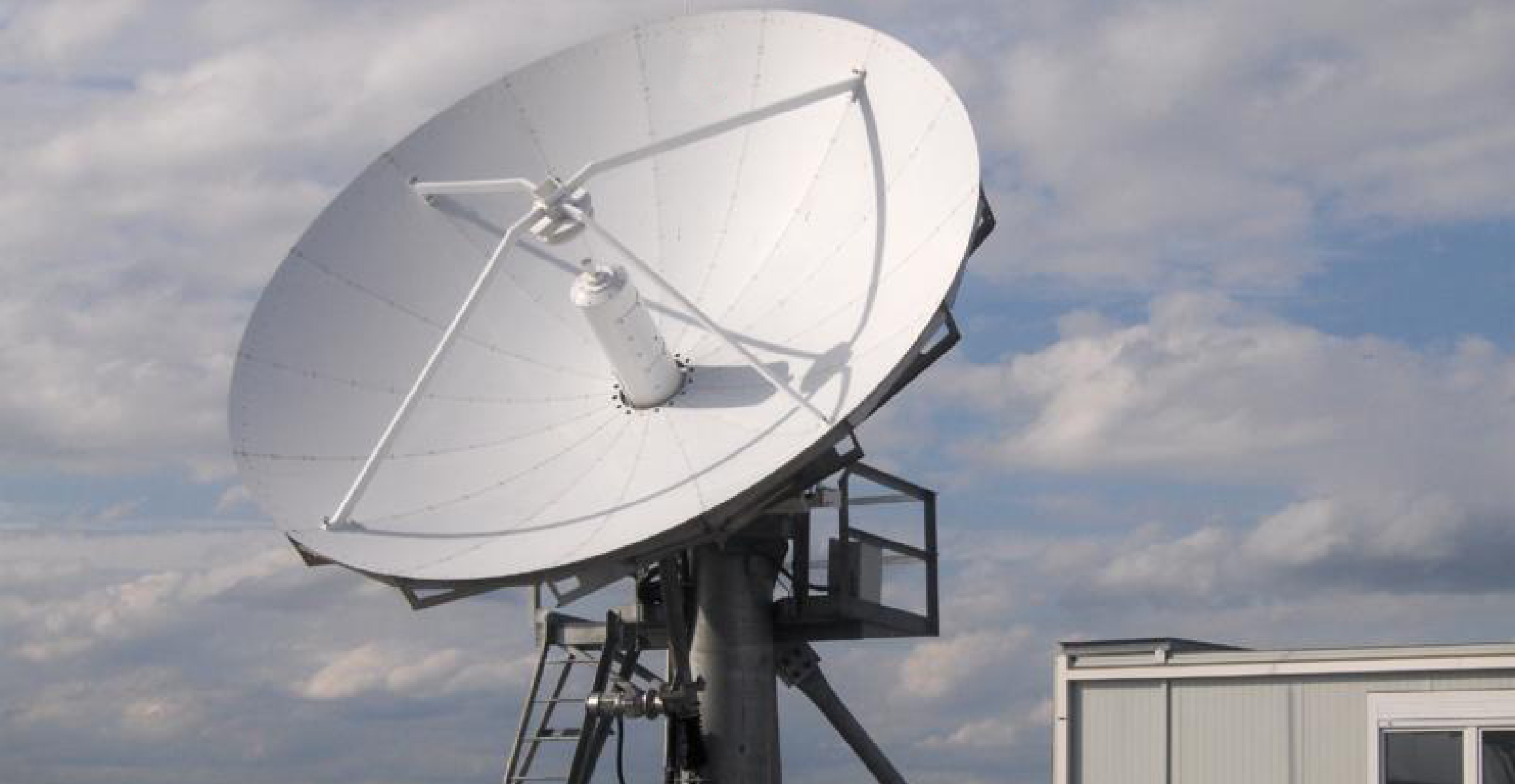

4.8m Compact Antenna

4.8m.Compact Antenna

The Communications & Power Industries (CPI) 4.8-meter antenna delivers exceptional performance for transmit/receive and receive-only applications for C through Ku-band frequencies. This antenna offers a deep dish reflector that incorporates precision-formed panels, contoured radials and hub assembly. It features an innovative feed and subreflector design which results in high gain, low noise temperature, high antenna efficiency and excellent rejection of noise and microwave interference.

The aluminum reflector is supported by a galvanized pedestal that provides the required stiffness for pointing and tracking accuracy. The pedestals are designed for full orbital arc coverage and are readily adaptable to ground or rooftop installations. The electrical performance is compliant with ITU and FCC sidelobe specifications. Type approved configurations are available for Intelsat (F1, E2), Eutelsat (L), Asiasat, Hispasat, EuropeStar or Singapore Telecom. All configurations meet SATCOM Technologies’ own type-approved quality assurance and performance guarantee.

  • C, X, Ku and DBS-band feed configurations
  • C/Ku receive-only feed systems
  • Specialized feed systems (e.g. extended, multi-band)
  • Improved feed cross-pol performance
  • Fixed or motorizable pedestal mounts
  • Antenna control system with tracking
  • Reflector and feed deicing systems
  • Environmental hub configurations
  • Integrated transmit cross-axis kits
  • Integrated LNA or LNB systems
  • HPAs, converters and M&C systems
  • Load frame or non-penetrating mounts
  • Packing for sea and air transport
  • Turnkey installation and testing
  • X-band low PIM reflector/feed configurations
  • Extended azimuth travel
  • High wind configuration
  • Low operating temperatures
  • High power configurations
  • For Ka-band see separate datasheet
