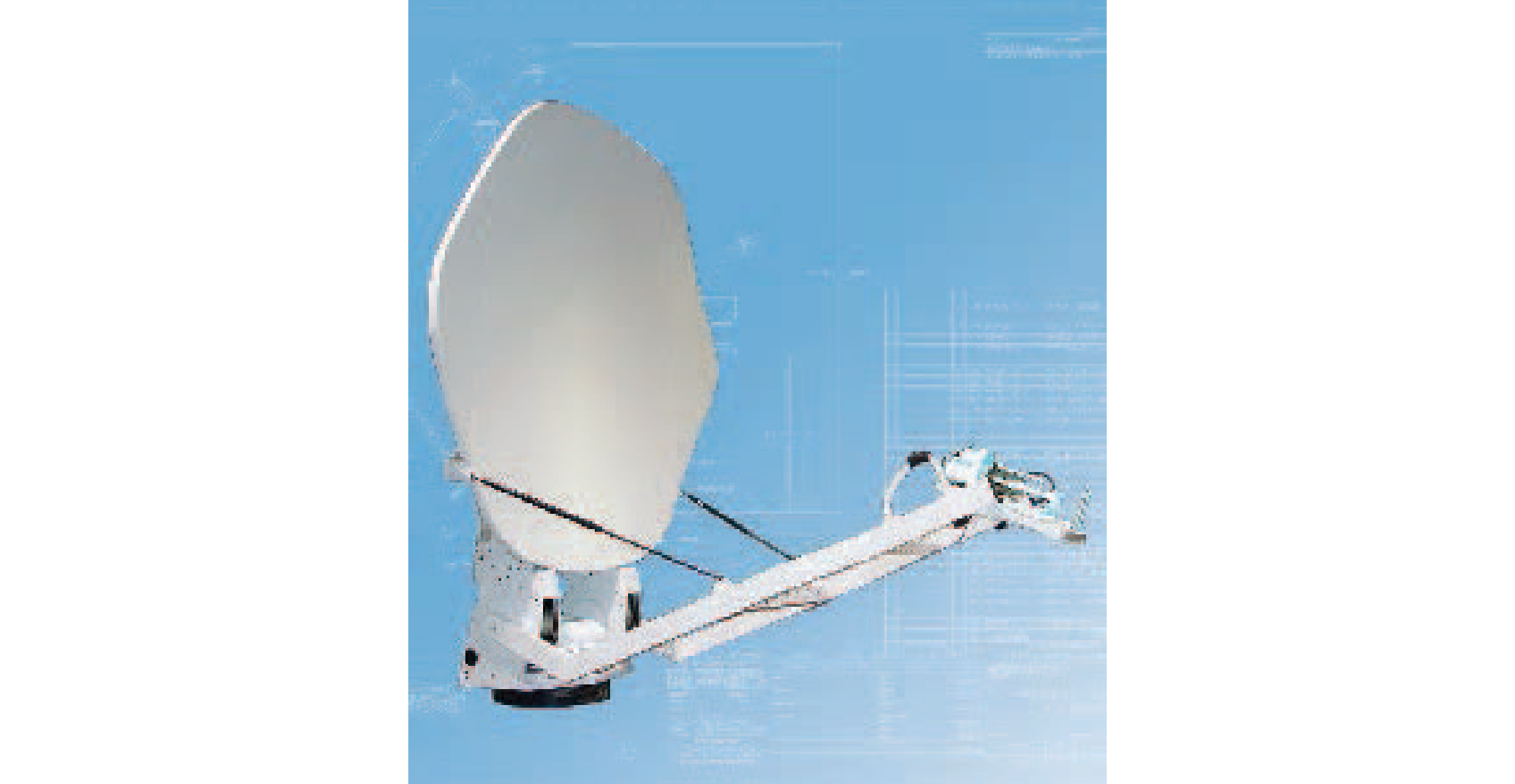

C240M Mobile Antenna

The Communications & Power Industries (CPI) lightweight 2.4-meter mobile antenna is designed for worldwide transmit and receive operation in C, X, Ku and Ka-band. This mobile antenna consists of a carbon fiber composite reflector and back beam mounted on a cable-driven, elevation-overazimuth positioning system. This results in an antenna with superior stiffness and high performance under wind loading conditions.

The unique shape and the accurate reflector surface provide exceptionally low sidelobe and cross-polarization performance well within INTELSAT and EUTELSAT requirements. The interchangeable feeds are palletized for quick, easy removal and replacement, allowing the end-user to effectively change frequency bands in the field within minutes. The complete antenna system can be interfaced with most light weight vehicle structures for the purpose of mobile applications.

Aluminum/carbon fiber composite construction

  • Precision surface
  • High stiffness
  • Robust design for vehicle mounting

High performance

  • Low sidelobes, high EIRP capability
  • Compliant under operational wind conditions

Stow/deployment

  • Low profile
  • Stow position on vehicle
  • Precision alignment
Options

– Finishes

  • Standard color Ford Polar White
  • Options Green Fed Std 595 34094 or Desert Sand Fed Std 595 33303
    – please specify at order

– Boom-mounted electronics integration kits
– Tx waveguide run
