Cradlepoint IBR900 Series

Compact, ruggedized Gigabit-Class LTE router for advanced in-vehicle and IoT connectivity

Cradlepoint Router IBR-900
Cradlepoint IBR900 Router

The Cradlepoint IBR900 Series router is a rugged, compact solution for M2M or IoT networking, particularly for vehicles. This 4G/LTE mobile router can use cellular broadband, wired WAN or Wi-Fi as WAN connections to create a secure wireless network. Each model in the Cradlepoint IBR900 Series router has Gigabit Ethernet, Gigabit Wi-Fi and a quad-core processor to support the fastest ISPs with intelligent failover and load balancing on multi-connection setups. By using Cradlepoint NetCloud Manager, users can remotely manage and configure their network platform.



  • Robust, dependable Gigabit-Class LTE network platform for first responders and commercial fleets
  • Ruggedized for vibration, shock, dust, splash, and humidity
  • Mobile SD-WAN for optimized multi-link LTE connectivity
  • GPS for AVL integration and location tracking to provide current and historic vehicle location
  • Dual-modem capability with COR Extensibility Dock for multi-link dependability
  • Heatmapping for an LTE signal strength map of all areas a fleet has driven
  • WiFi-as-WAN for data-intensive tasks such as video offload
WAN
  • Dual-modem capable with optional COR Extensibility Dock
  • WiFi-as-WAN, with WPA2 Enterprise Authentication for WiFi-as-WAN
  • Failover/Failback
  • Load Balancing
  • Advanced Modem Failure Check
  • WAN Port Speed Control
  • WAN/LAN Traffic Steering
  • IP Passthrough
  • Standby
  • DynDNS
  • QoS (DSCP and Priority Queuing)
LAN
  • VLAN 802.1Q
  • DHCP Server, Client, Relay2
  • DNS and DNS Proxy
  • UPnP
  • DMZ
  • Multicast/Multicast Proxy
  • MAC Address Filtering
WiFi
  • Dual-Band, dual-concurrent
  • 802.11 a/b/g/n/ac wave 2—MU-MIMO and 256 QAM support
  • Multiple SSIDs: 2 per radio (4 total)
  • WPA2 Enterprise (WiFi)
  • Hotspot/Captive Portal
  • SSID-based Priority
  • Client Mode for faster data offload
  • Frequencies supported:
    • 2.4 GHz (2412 – 2472 MHz)
    • 5 GHz
      • U-NII-1 (5.150-5.250 GHz)
      • U-NII- 2a (5.250-5.350 GHz) North America IBR900-600M Only
      • U-NII-2c (5.470-5.725 GHz) North America IBR900-600M Only
      • U-NII-3 (5.7225-5.825 MHz) North America Only
Management
  • Cradlepoint NetCloud Manager
  • Web UI, API, CLI
  • Active GPS support on all models
  • Data Usage Alerts (router and per client)
  • Advanced Troubleshooting (support)
  • Device Alerts
  • SNMP
  • SMS control
  • Serial Redirector
  • Auto APN Recovery
  • Syslog
VPN & Routing
  • IPsec Tunnel – up to ten concurrent sessions
  • L2TP
  • GRE Tunnel
  • OSPF/BGP/RIP
  • Route Filters (Access Control Lists, Prefix Filters, Route Maps, Communities for BGP)
  • Per-Interface Routing
  • Routing Rules
  • Policy-based Routing
  • NAT-less Routing
  • Virtual Server/Port Forwarding
  • NEMO/DMNR
  • IPv6
  • VRRP
  • STP
  • NHRP
  • VTI Tunnel support
  • OpenVPN support
  • CP Secure VPN compatible
  • Serial PAD Mode



Remarks

*Native support for authentication. Authorization and accounting support through hotspot/captive portal services.
**802.1x Authentication for Ethernet not available for FIPS SKUs.

Cloud Optimized IP Communications
  • Cloud Optimized IP Communications
  • Automated WAN Failover/Failback support
  • WAN Affinity and QoS allow prioritization of VoIP services
  • Advanced VPN connectivity options to HQ
  • SIP ALG and NAT to allow VoIP and UC communications to traverse firewall
  • MAC Address Filtering
  • 802.1p/q for LAN QoS segmentation and treatment of VoIP on LAN
  • Private Network support (wired and 4G WAN)
  • Cloud-based management
IoT Connector
  • NetCloud Edge Connector for Microsoft Azure IoT Central

Application

Cradlepoint Router IBR-900
Cradlepoint Router IBR-900
Cradlepoint IBR900 Router

Food delivery truck

Cradlepoint IBR900 Router

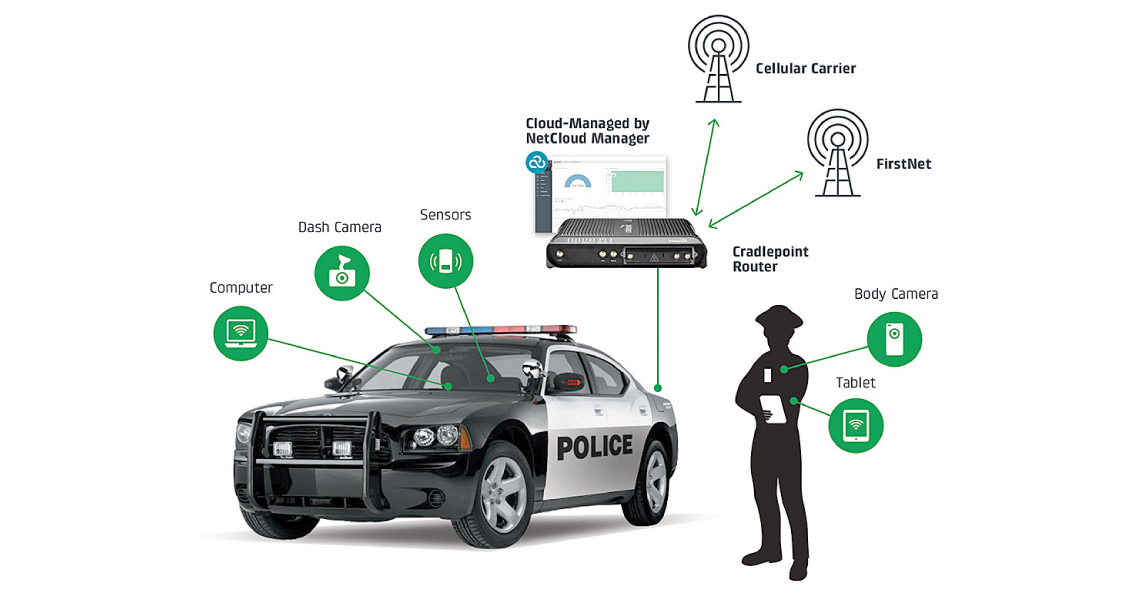

Patrol car
