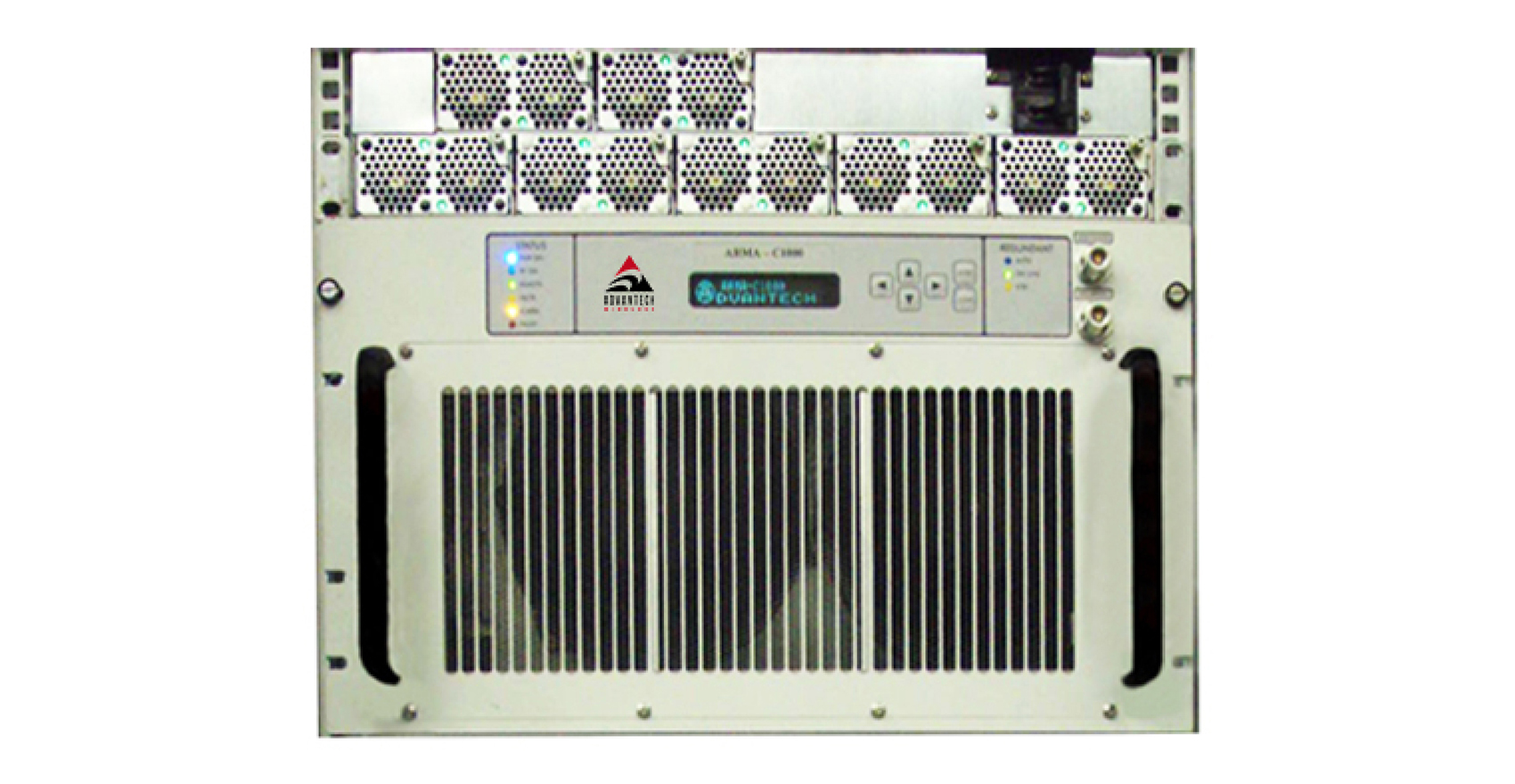

X-Band 600W/700W/800W/1000W Indoor GaAs

SSPA Rack-moun
ARMA-5000X Series

The ARMA-5000X series are the rack-mount solid-state power amplifiers (SSPAs), operating in X-Band frequency range. The amplifier is an integrated unit, complete with power supply and cooling system. Intended for indoor operation, the amplifiers are of compact size and occupy nine rack-mounting spaces (9 RU – 15) of a standard 19-inch rack. Built-in microprocessor controller provides capability for serial port interfaces (RS485) for remote monitoring and control. Advantech’s SSPAs set the industry standard for linearity and operating efficiency. Built-in design features and assembly methods incorporated with efficient combining techniques result in the trouble-free operation of the amplifier.

  • High gain and linearity
  • Output power up to 1000W (see table A)
  • Gain adjustment (Local & Remote)
  • Remote Monitor & Control (Local & Remote)
  • Output sample monitor port
  • Temperature gain compensation
  • Automatic over-temperature shutdown
  • Automatic high reflected power shutdown
  • Infinite VSWR protection
  • Power factor correction
  • CE Marking
Application

The featured SSPAs are designed for X-Band satellite up-link applications. They are designed for 19-inch rack mounting in a protected environment. The ARMA-5000X series are available in output power from 20W to 1000W. For higher power Advantech provides phase-combined systems. Other SSPAs are available for operation at other satellite frequency bands. With all the features of the ARMA-5000X, Advantech also offers a built-in converter.

Redundancy

Advantech Wireless C-Band line of Amplifiers and BUCs may be configured to operate in 1:1 or 1:2 redundancy mode. No extra controller is required for the redundancy operation as the built-in controller in each unit provides this function. For 1:1 redundancy operation, in addition to the two units (operating and standby) a special redundancy kit is required. For 1:2 redundancy operation another redundancy kit is needed in addition to the three units. The kits include the waveguide switches, terminations, splitter, interconnecting cable assemblies and mounting frames.

Options
  • Integrated Block Up Converter
  • RF input sample port
  • Redundant system
Accessories
  • Redundancy Kit
  • Shelf slides
  • Remote M&C panel (Ethernet port optional)
  • Receive Reject Filter
