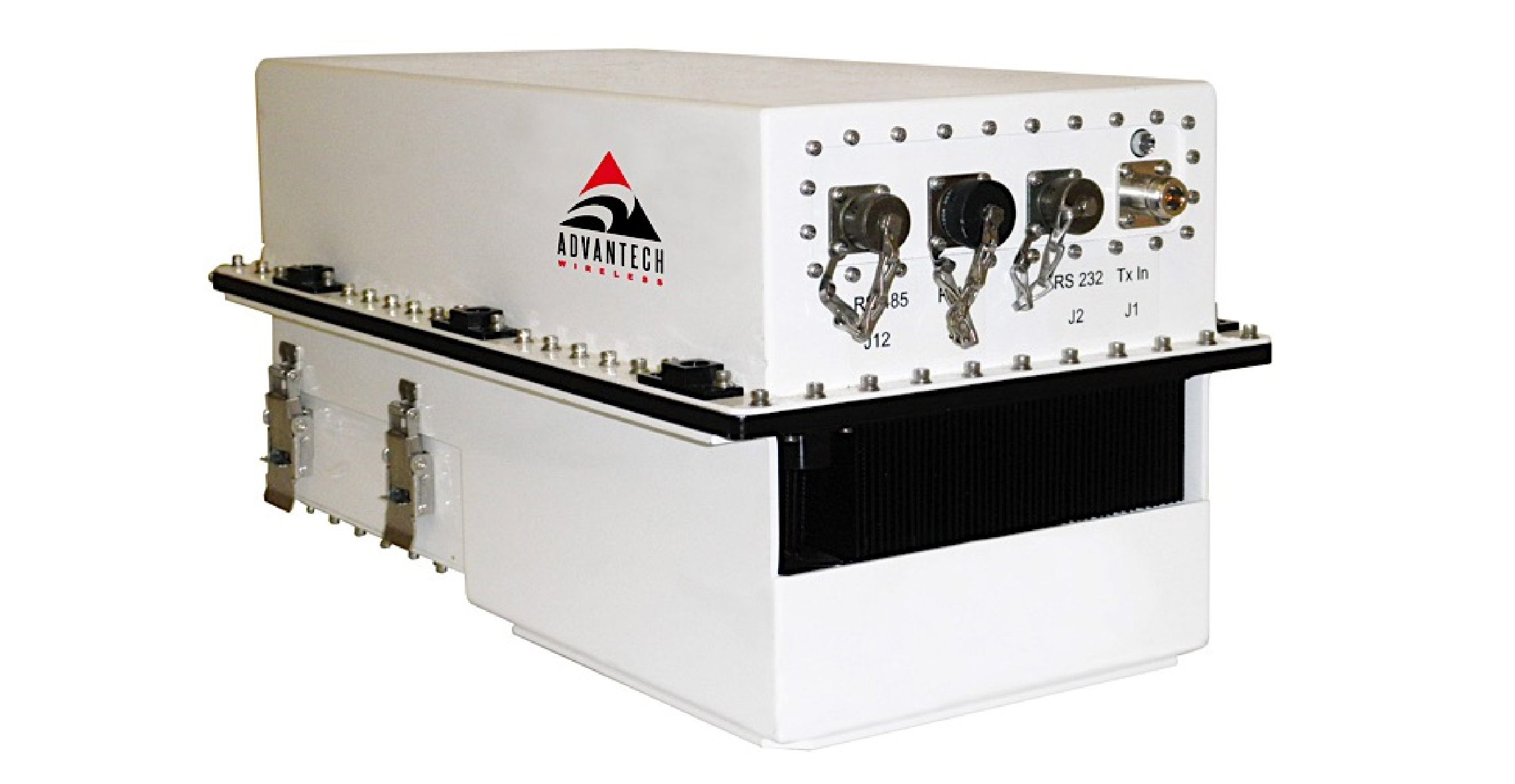

Ku-Band 150W/200W/250W Outdoor GaN

Second Generation GaN Technology

Based on GaN technology the new G-Series Ku-Band BUCs provide highest possible power density and smallest size on the market. Combined with the traditional Advantech Wireless features, these new series of BUCs and SSPAs provide the ultimate in performance and convenience.

  • Full range of output power of 150W, 200W or 250W in a single package
  • SSPA or SSPB (BUC) option
  • Super High linearity
  • Redundant ready with no external controller
  • Full M&C capability via RS232, RS485 or Ethernet port
  • Built-in Forward precision powering metering
  • Output RF calibrated Sample Port
  • Redundant Systems shipped fully tested
  • Infinite VSWR protection with automatic high reflected power shutdown
  • Built-in 70 dB Receive Reject Filter
  • Detachable power supply module
  • Weatherproof construction
  • CE marking
  • 1:1 or 1:2 Redundant configuration
  • L-Band input (SSPB/BUC operation)
  • Internal/External reference with auto-sensing
  • Ethernet port
  • Mounting kits
  • External Receive and Transmit Reject Filter
  • Remote M&C panel with optional SNMP
  • Handheld terminal
  • Flexible and rigid waveguides
  • Mounting frames
  • High power terminations
  • Replacement fans
