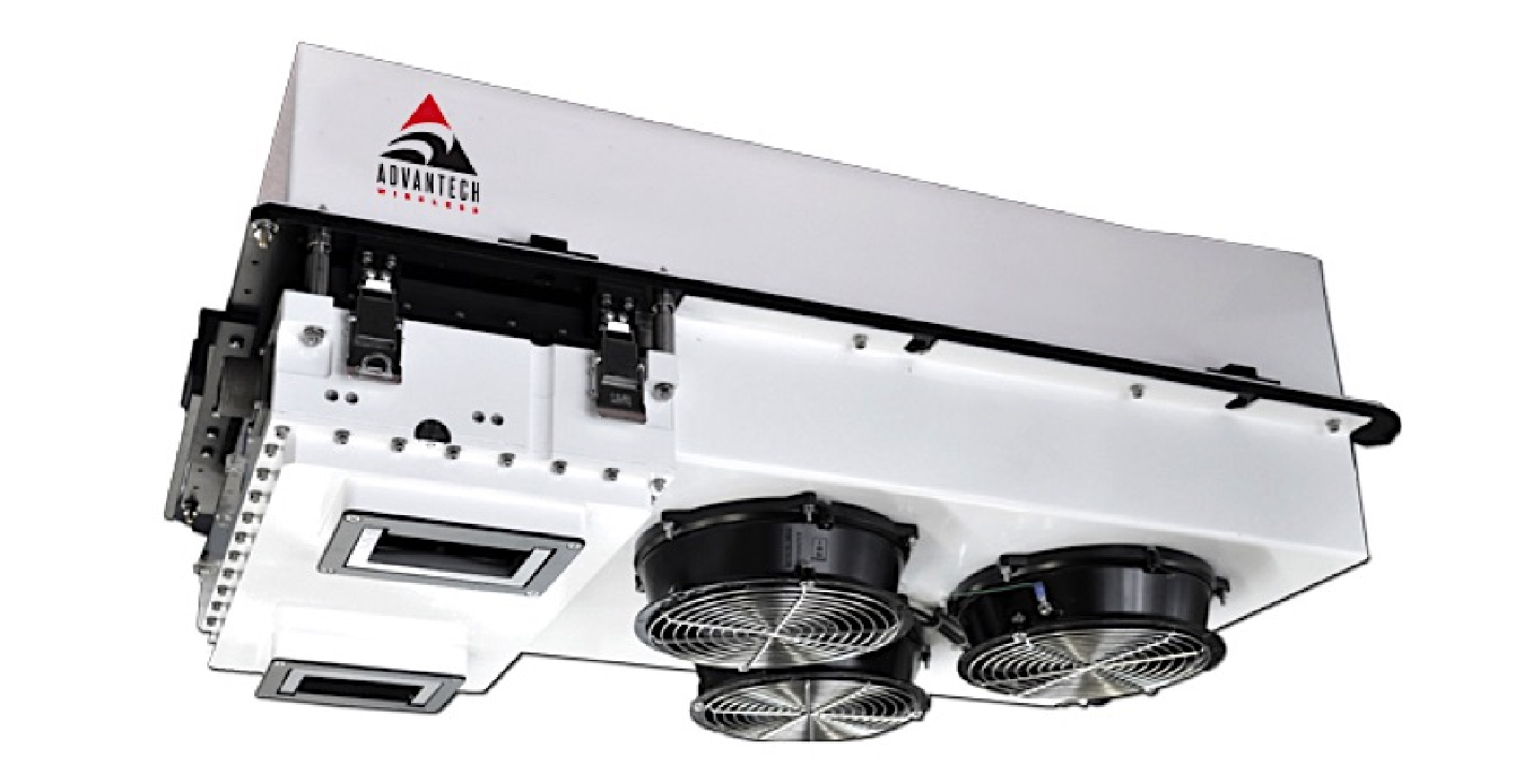

Ku-Band 500W Outdoor GaN

BUC/SSPB/SSPA
Second Generation GaN Technology

Based on GaN technology the new G-Series Ku-Band BUCs provide high power density in a compact size. Combined with the traditional Advantech Wireless features, these new series of BUCs provide the ultimate in performance and convenience.

  • Full range of output power of 500W in a single package
  • Very High linearity
  • Redundant ready with no external controller
  • Full M&C capability via RS232, RS485 or Ethernet port
  • Built-in Forward precision powering metering
  • Output RF calibrated Sample Port
  • Redundant Systems shipped fully tested
  • Infinite VSWR protection with automatic high reflected power shutdown
  • Weatherproof construction
  • CE marking
Options
  • 1:1 or 1:2 Redundant configuration
  • L-Band input (SSPB/BUC operation)
  • Internal/External reference with auto-sensing
  • Ethernet port
Accessories
  • Mounting kits
  • Remote M&C panel with optional SNMP
  • Handheld terminal
  • Flexible and rigid waveguides
  • Mounting frames
