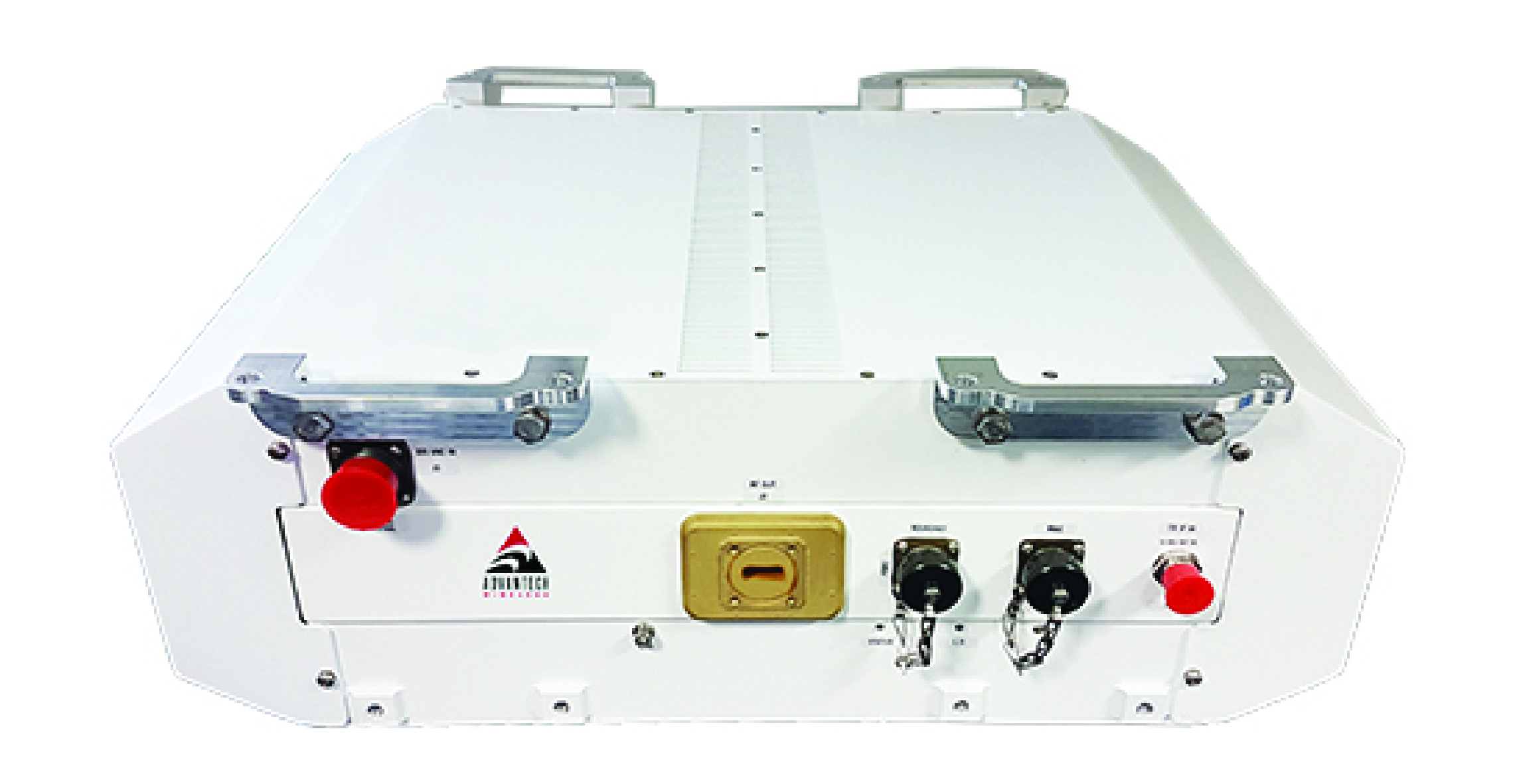

Taurus-Line

C, Ku, and X-Band Outdoor GaN

BUC/SSPB/SSPA

  • Ku-Band: 300W / 400W / 500W
  • C-Band: 800W / 1000W
  • X-Band: 800W / 1000W

800W/1000W

Smallest form factor in the industry.  Ideal for mobile and SNG applications.

n ideal solution for both mobile and fixed Communication terminals. It is designed for high efficiency resulting in an optimal compact form factor with high performance and reliability. With the advanced customer interface and HTTP embedded web page, the operator is able to monitor and control the BUC and the System Redundancy.

  • Ku-Band: 300W / 400W / 500W
  • C-Band: 800W / 1000W
  • X-Band: 800W / 1000W
  • Highest power density in the industry
  • Available in AC
  • Up to 1000W of RF Output Power
  • Up to 400W of Linear power
  • Built-in monitoring of critical parameters such as: RF power detection, mute control, over temperature shutdown, summary alarm
  • IP55 rated housing and fan (weather proof construction)
  • M&C Interfaces included: RS485, RS232, Ethernet and dry-contacts
  • WEB interface and SNMP monitoring
  • Redundant Ready
  • 1:1 and 1:2 built into the BUC eliminating external controller
  • Ku-Band: Optional Dual LO (Switchable). covers both regular and ext. Ku-Band
  • Other frequency ranges available
  • Optional 10MHz reference
  • Optional output sample port
  • Optional Remote control unit
