ไทยHSC Series HD/SD System Camera
HSC – The World Standard for High Definition Production
Sony proudly introduces four all-new powerful HD/SD system cameras in its HSC Series, which contains Sony’s latest broadcast technologies.

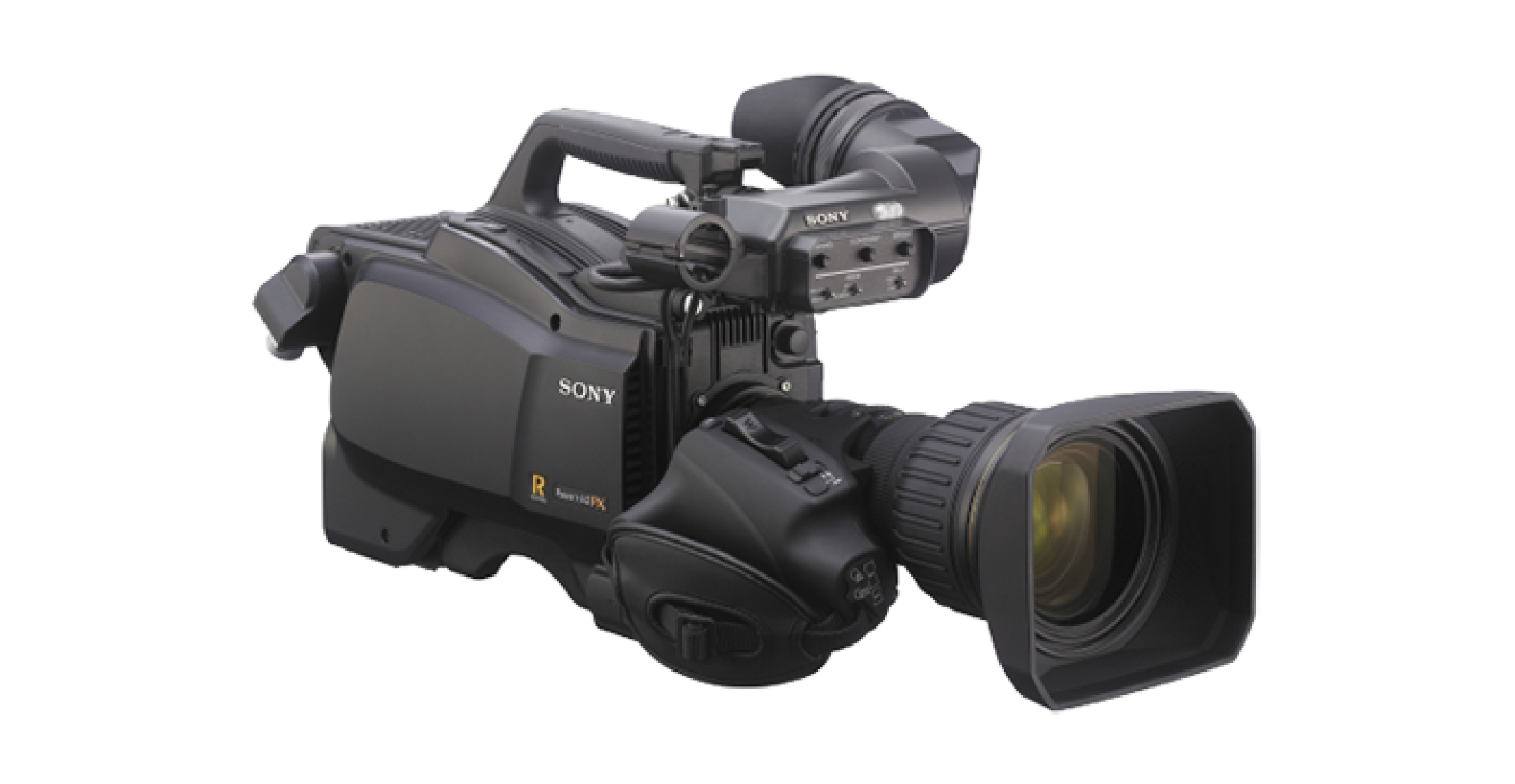

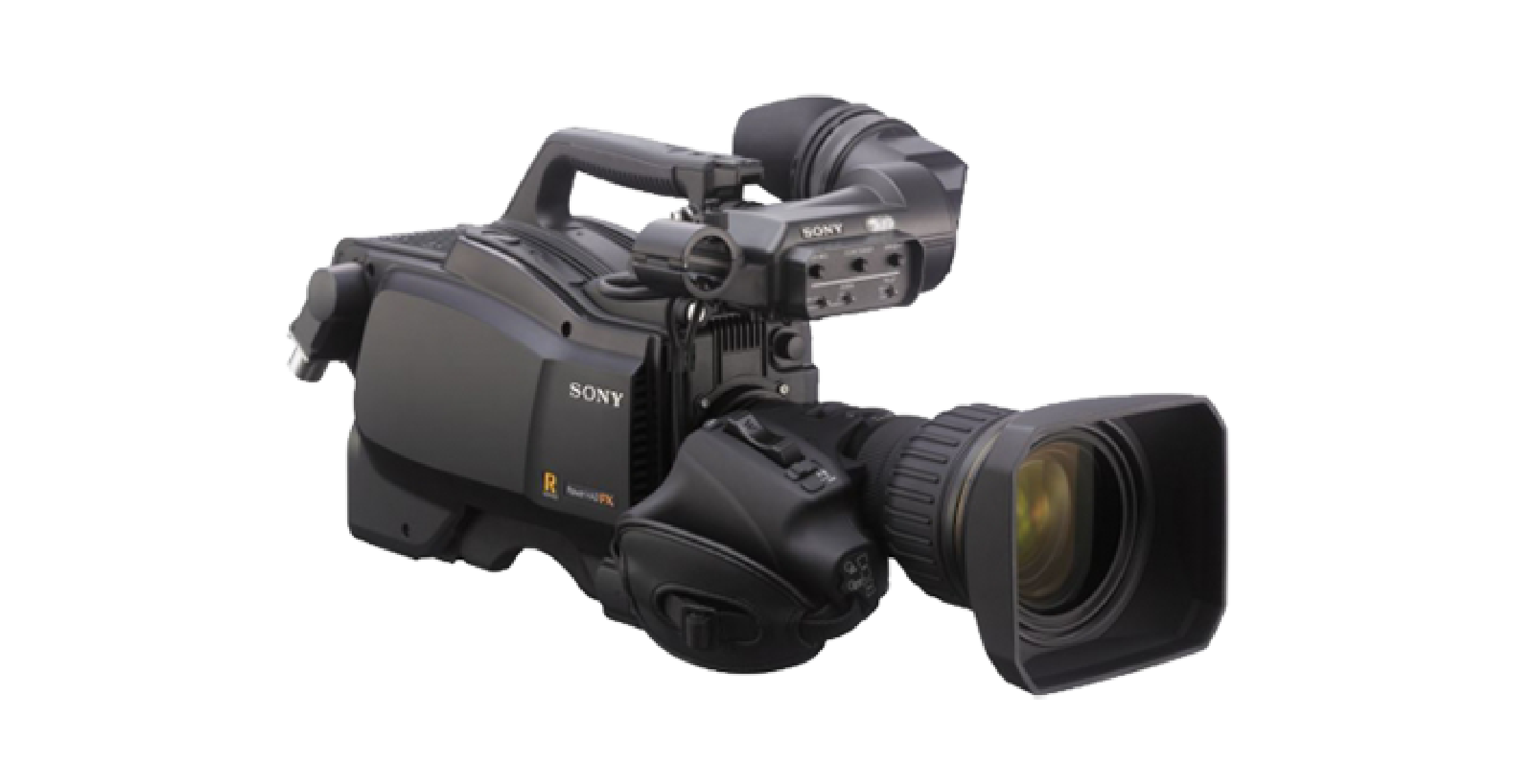

The HSC-300R and HSC-100R incorporate digital triax technology, which allows systems to be configured with conventional digital triax, while the HSC-300RF and HSC-100RF incorporate optical fiber technology, enabling longdistance signal transmission.
Each of these HSC Series cameras is equipped with sophisticated 16-bit A/D conversion circuitry, as well as three superb 2/3-inch CCDs to achieve high levels of picture quality.
Sony also offers large-lens operation with the HSC-300R and HSC-300RF in combination with HDLA-1500 Series Large Lens Adaptors. These adaptors have been widely accepted for use with the flagship model of Sony’s HDC Series, and feature a unique Quick Mount design to maximize camera operability.
Multi-format Operation
Users can choose from a wide range of capturing modes, including 1080/29.97PsF*1 and 1080/25PsF*1 as well as
1080/50i, 1080/59.94i, 720/50p, 720/59.94p, 576/50i, and 480/59.94i.
*1 Optional HZC-PSF3 software is required.
High-quality 16-bit A/D Conversion and DSP LSI
Each of these cameras also incorporates a highperformance 16-bit A/D converter with the latest technologies, enabling captured images to be processed with maximum precision. Also, the Auto Lens Aberration Compensation function can optimize lens performance to provide stunning picture quality.
Sophisticated 2/3-inch CCD
HSC Series cameras are equipped with field-proven 2/3-inch-type full-resolution 1920 x 1080 CCDs. Due to Sony’s advanced sensor technologies, the CCD imager offers a high sensitivity of F10 for 59.94 Hz and F11 for 50 Hz with a remarkable signal-to-noise ratio (S/N) of -60 dB (HD) for high-quality pictures in all kinds of demanding shooting environments.
